Rubber Diaphragms
Rubber diaphragms also known as rubber membranes are specialized components designed to provide enhanced strength and durability in applications requiring precise control and flexibility. These diaphragms are composed of a rubber layer integrated with a fabric material, typically nylon, polyester or aramid, which reinforces the rubber and imparts additional stability and resistance to deformation. This unique combination allows the diaphragms to withstand high-pressure environments, abrasive conditions, and extensive mechanical stress, making them critical in various industrial applications.
Types of rubber diaphragms based on design
1. Flat Diaphragms
Simple, flat, and unshaped membranes. Used in low-pressure applications where no pre-formed shape is needed. Commonly employed in basic sealing or low-stress environments.

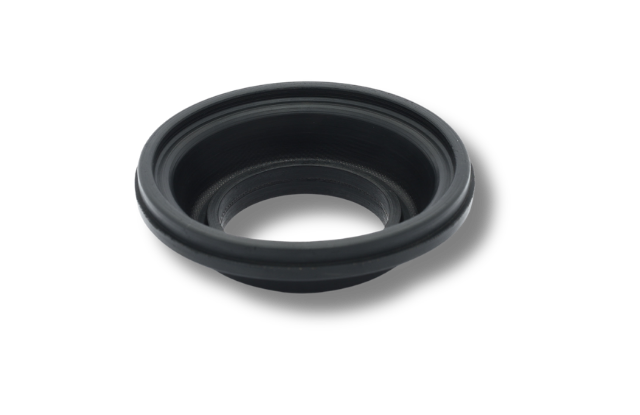

2. Molded Diaphragms
Pre-formed to fit specific shapes or profiles. Ideal for applications requiring high precision or complex geometries. Used in pumps, valves, and custom mechanical systems.
3. Fabric-Reinforced Diaphragms
Embedded with fabric (e.g., nylon, polyester, or aramid) for added tensile strength. Designed to handle high-pressure and high-cycle applications. Common in industrial systems like actuators and compressors.
4. Rolling Diaphragms
Designed to roll within a housing during motion, minimizing stress and wear. Used in pneumatic and hydraulic cylinders, actuators, and pressure regulators. Offers a longer service life compared to traditional designs.
5. Perforated Diaphragms
Feature openings or holes for fluid or gas flow while maintaining separation between two chambers. Often used in filtration or flow control applications.
6. Convoluted Diaphragms
Incorporate flexible ridges or folds (convolutions) to allow for greater movement without overstretching. Suitable for dynamic applications requiring large deflection or displacement.
7. Dual-Layer or Composite Diaphragms
Made with multiple layers of different materials (e.g., rubber combined with metal or fabric backing). Provide enhanced durability and specific performance traits, such as chemical resistance or rigidity.
8. Sealing Diaphragms
Thin membranes specifically designed for sealing purposes, preventing fluid or gas leakage. Common in applications such as check valves, pumps, and fluid control systems.
Application of diaphragms
Rubber diaphragms are widely used in various industries, including automotive, aerospace, medical, and industrial sectors. In automotive applications, they are found in braking systems, fuel systems, and emission controls. In aerospace, they are used in flight control systems and environmental control systems. Medical devices, such as ventilators and blood pressure monitors, also rely on these diaphragms for accurate and reliable performance. Industrial uses include pumps and valves in chemical processing, water treatment, and oil and gas exploration.
Rubber diaphragms serve a critical function in various mechanical and pneumatic systems. Acting as flexible membranes, they transmit force or pressure differentials while maintaining a barrier between two mediums, often fluid or gas.
These diaphragms are adept at converting pressure variations into mechanical movements, making them indispensable in applications such as pumps, valves, actuators, and regulators. Their elasticity and durability allow them to withstand repetitive flexing and exposure to a range of operating conditions, including extreme temperatures and corrosive environments.
By effectively isolating and transferring pressure, rubber diaphragms ensure the smooth operation and reliability of diverse industrial processes, automotive systems, medical devices, and more.
