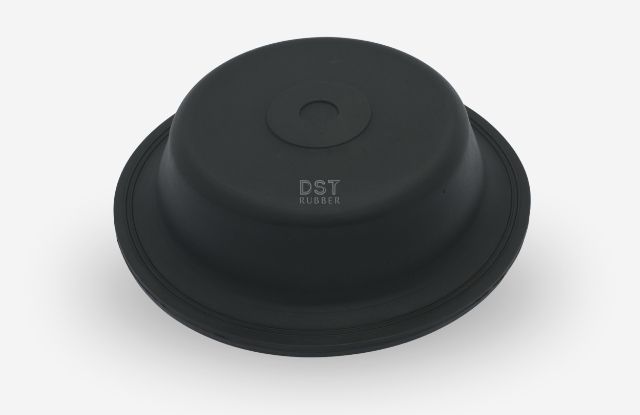

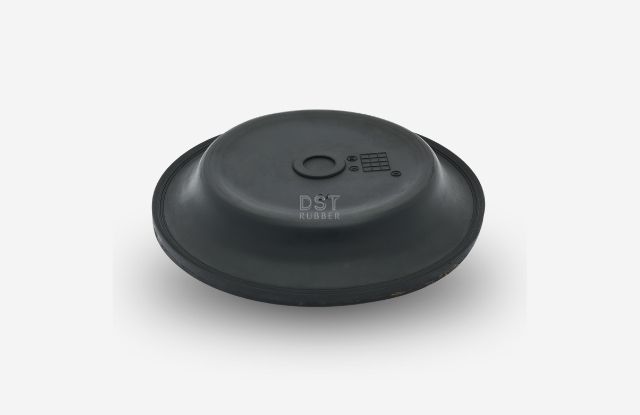

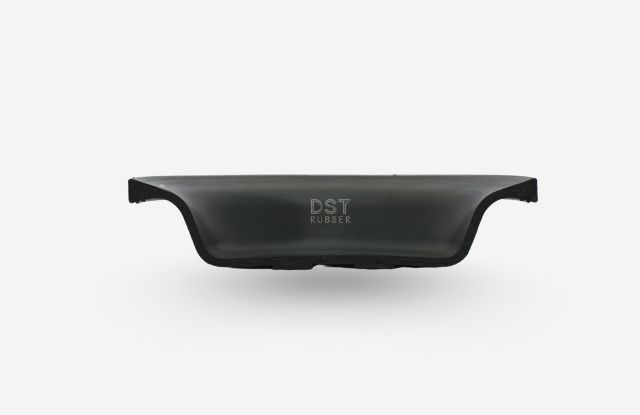

Air Brake Chamber Diaphragms
What Are Air Brake Chamber Diaphragms?
An Air Brake Chamber Diaphragm is a critical safety component in the air brake assembly of commercial vehicles. When the driver applies the brakes, compressed air acts on the diaphragm inside the brake chamber, causing it to flex and displace a push rod. This mechanical action engages the brake shoes against the wheel drum, bringing the vehicle to a stop.
Because any leakage or failure in this diaphragm directly compromises braking efficiency, the material selection, fabric positioning, and dimensional accuracy are all non-negotiable. DS Rubber’s diaphragms are manufactured with precision elastomer compounds and reinforced fabric layers to ensure zero-leak performance under repeated high-pressure cycling.
Air Brake Chamber Diaphragm — Sizes & Specifications
| Type | Outer Diameter (mm) | Outer Diameter (inches) | Typical Application |
|---|---|---|---|
| Type 12 | 140 mm | 5.5″ | Light commercial vehicles |
| Type 16 | 152 mm | 6.0″ | Medium-duty trucks |
| Type 20 | 165 mm | 6.5″ | Trucks & trailers |
| Type 24 | 178 mm | 7.0″ | Heavy trucks & buses |
| Type 30 | 203 mm | 8.0″ | Heavy-duty commercial vehicles |
| Type 36 | 225 mm | 9.0″ | Special / heavy applications |
Why Choose DS Rubber Air Brake Diaphragms?
OEM-Equivalent Quality
Fabric-Reinforced Construction
Corrosion-Resistant Materials
All Standard Types Available
Export-Ready Manufacturing
In-House Rubber Mixing
Applications & Vehicle Compatibility
Quality Standards & Manufacturing Excellence
ISO 9001
OEM-equivalent
Export-grade
SAE J2521
How Does an Air Brake Chamber Diaphragm Work?
The air brake chamber diaphragm acts as the heart of the air brake assembly. When brakes are applied, compressed air enters the service chamber and pushes against the diaphragm. The diaphragm flexes inward, applying force to the push rod, which activates the slack adjuster and brake shoes, pressing them against the brake drum.
When air pressure is released, the return spring pushes the diaphragm back to its neutral position, releasing the brakes. The diaphragm must therefore withstand thousands of such flex cycles without cracking, deforming, or leaking — which is why material quality and fabric reinforcement are so critical. A failed diaphragm means compromised braking, which is why OEM-grade manufacturing matters.
Related Products
Get a Quote for Air Brake Chamber Diaphragms
FAQ
DS Rubber manufactures all standard types — Type 12 through Type 36 — with custom sizes and wall thicknesses available on request.
We work with EPDM, Neoprene, Nitrile, Natural Rubber, and Butyl Rubber depending on operating requirements. Our in-house mixing facility lets us customize compound properties to meet your exact specifications.
Yes. All our air brake chamber diaphragms are fabric-reinforced to ensure they withstand repeated high-pressure flex cycles without structural failure.
Absolutely. We currently export to the USA and Europe and have the manufacturing and documentation capability to meet international quality standards.
Diaphragm type corresponds to the brake chamber size on your vehicle. Refer to the size chart above or contact our team with your vehicle make/model and we’ll confirm the correct specification.
Please contact us for MOQ details. We accept both bulk orders from distributors and OEM-scale production orders.
