Our DS Rubber Infrastructure

Our Manufacturing Infrastructure

Chemical Weighing Balance Machine

DS Rubber controls compounding, moulding, and testing internally. Raw material weighing is accurate to ±0.1 g. Every batch is tested for cure characteristics, mechanical strength, chemical resistance, and dimensional accuracy before dispatch.

  • Weighing accuracy: ±0.1 g
  • Testing methods: 12
  • Compounding and moulding: in-house
  • Traceability: batch-level

Overview

DS Rubber manufactures rubber components through an integrated process: raw material weighing, compounding, milling, calendering, preforming, and press moulding, followed by physical, chemical, and functional testing. All stages are performed in-house. No compounding or testing step is outsourced. Each batch is weighed, mixed, and tested using the equipment listed below, and results are recorded for traceability.

Manufacturing Infrastructure

Six machines cover the compounding and moulding process, from raw material intake to final part formation.

Chemical Weighing Balance Machine

Automatic Chemical Weighing System

Weighs polymers, fillers, curatives, and additives to ±0.1 g accuracy, logging batch-wise identification for full traceability. This precision keeps compound formulation consistent across every production batch.
Dispersion Kneader

Dispersion Kneader

Disperses fillers, carbon black, silica, and additives evenly into the rubber matrix using controlled rotor speed and chamber temperature. Even dispersion determines tensile strength, hardness, fatigue resistance, and sealing performance.

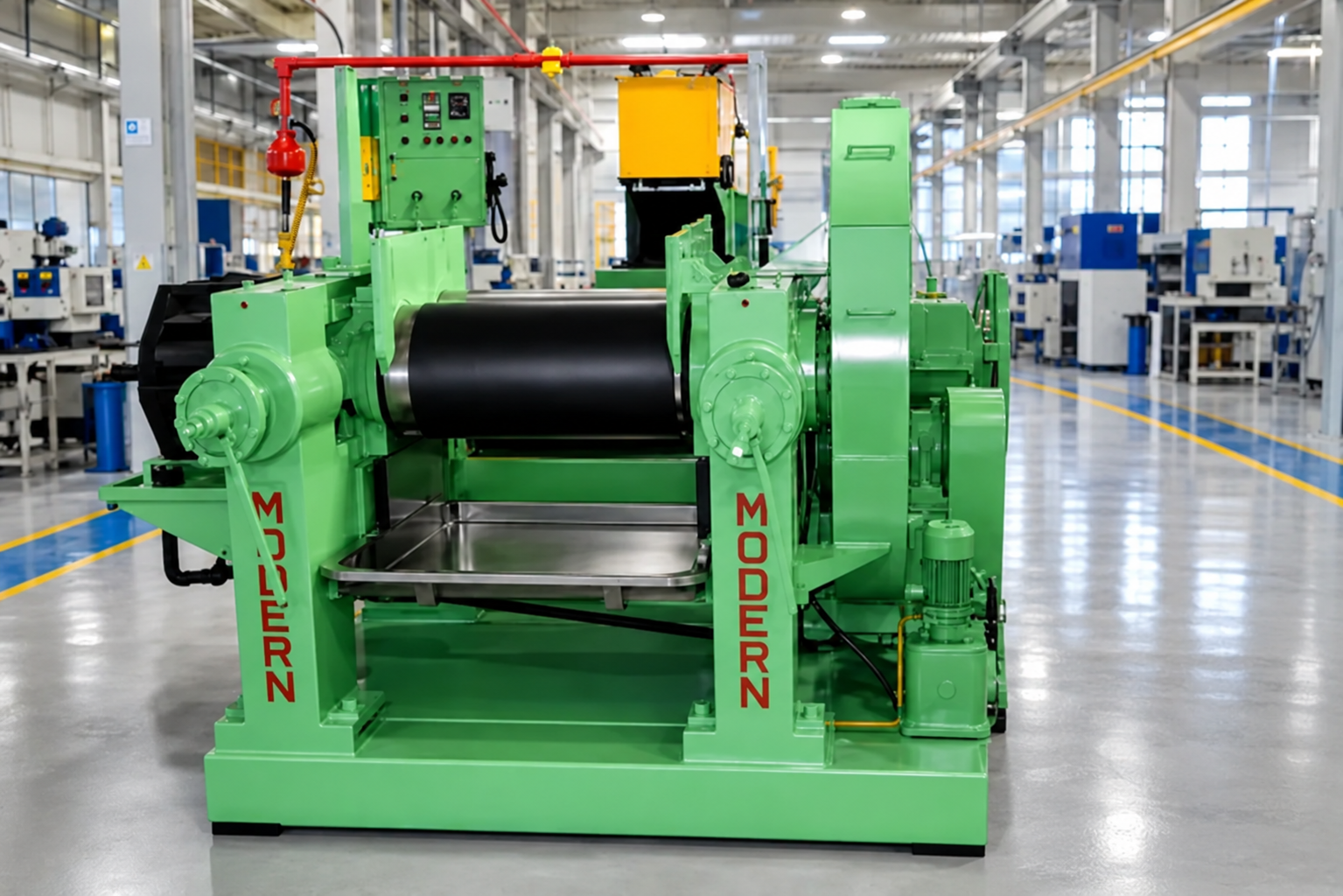

Two Roll Mill

Homogenizes and sheets the rubber compound ahead of moulding using precision roll gap adjustment and temperature-controlled rolls. It delivers uniform sheet thickness and consistent material distribution across every batch.

Preformer

Produces pre-weighed rubber blanks for compression and transfer moulding, with controlled slug weight, volume, and high repeatability. This reduces flash and improves dimensional consistency on finished parts.

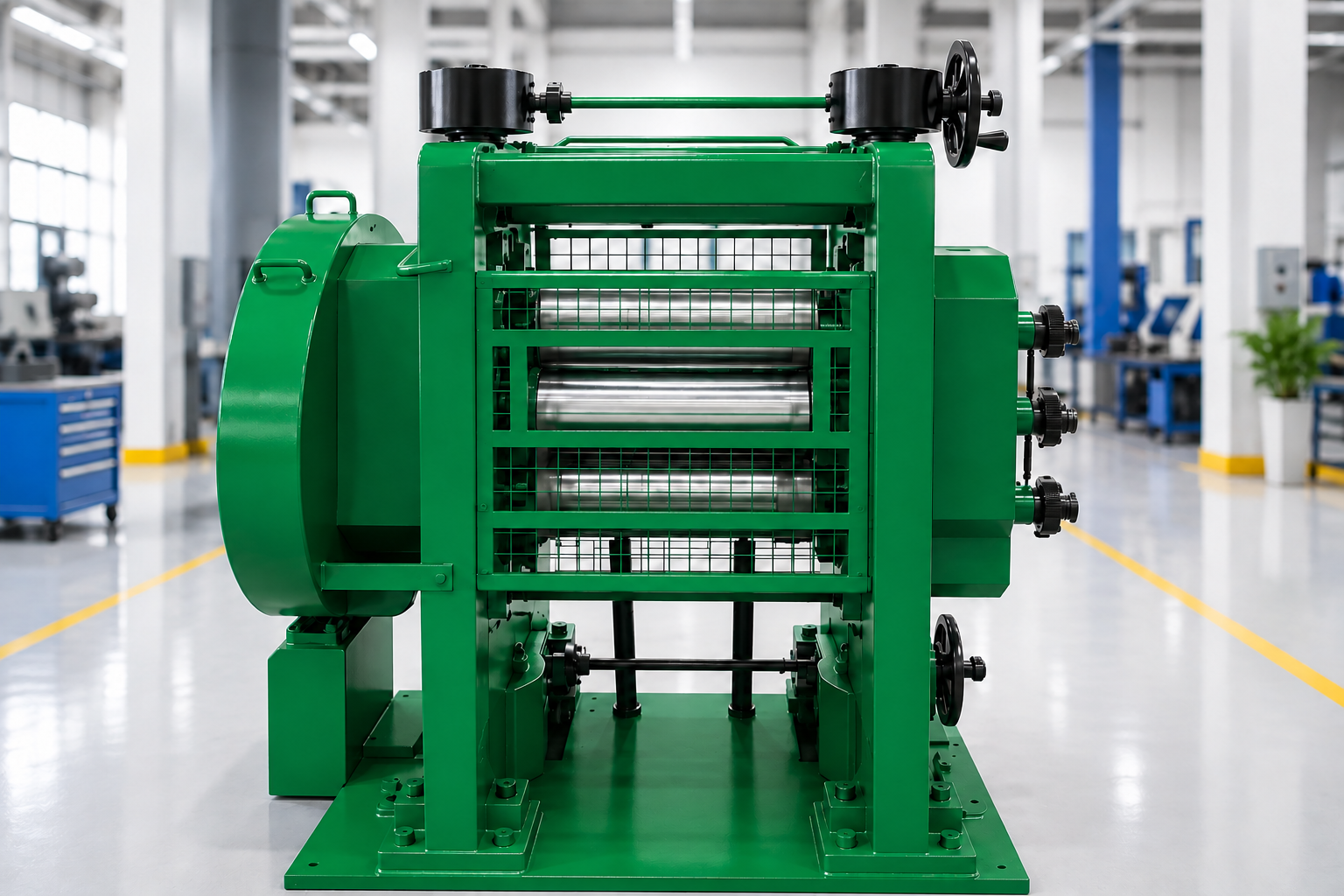

Calendering Machine

Calendering Machine

Produces uniform rubber sheets and fabric-reinforced diaphragms using three-roll thickness control and fabric coating capability. Precise gauge control directly affects diaphragm performance, sealing behavior, and long-term durability.
Hydraulic Press

Hydraulic Press

Moulds and cures rubber under high-tonnage compression with controlled temperature, pressure, and cure cycle, supported by multi-cavity tooling. It produces accurate final dimensions, physical properties, and finished surface quality.

Testing Infrastructure

Twelve instruments validate cure behavior, mechanical properties, chemical resistance, and dimensional accuracy.

Rheometer at DS Rubber

Oscillating Disc Rheometer

Measures curing behavior under controlled temperature and oscillation, generating a torque-versus-time cure curve for each compound. It determines optimum cure time, scorch safety, cure rate, and crosslink density.
Universal Testing Machine

Digital Tensile Testing Machine

Tests tension, compression, peel, and flexural properties using a computer-controlled universal tester with a digital load cell and configurable crosshead speed. It verifies tensile strength, elongation at break, and modulus against specification.
Hot Air Oven

Accelerated Ageing Oven

Simulates long-term thermal ageing using forced-air circulation and programmable, uniform temperature control across the test chamber. It measures retention of hardness, tensile strength, elongation, and elasticity to estimate service life.
Universal Testing Machine

Metal to Rubber Adhesion Tester

Measures adhesion between rubber and reinforcement materials using peel and pull-off testing with digital force measurement. This confirms bond strength on fabric-reinforced diaphragms and rubber-to-metal components under cyclic loading.

Compression Set Resistance Apparatus

Measures rubber recovery after prolonged compression using precision fixtures, controlled ageing temperature, and standardized deflection. Compression set values are a direct indicator of long-term sealing force retention.

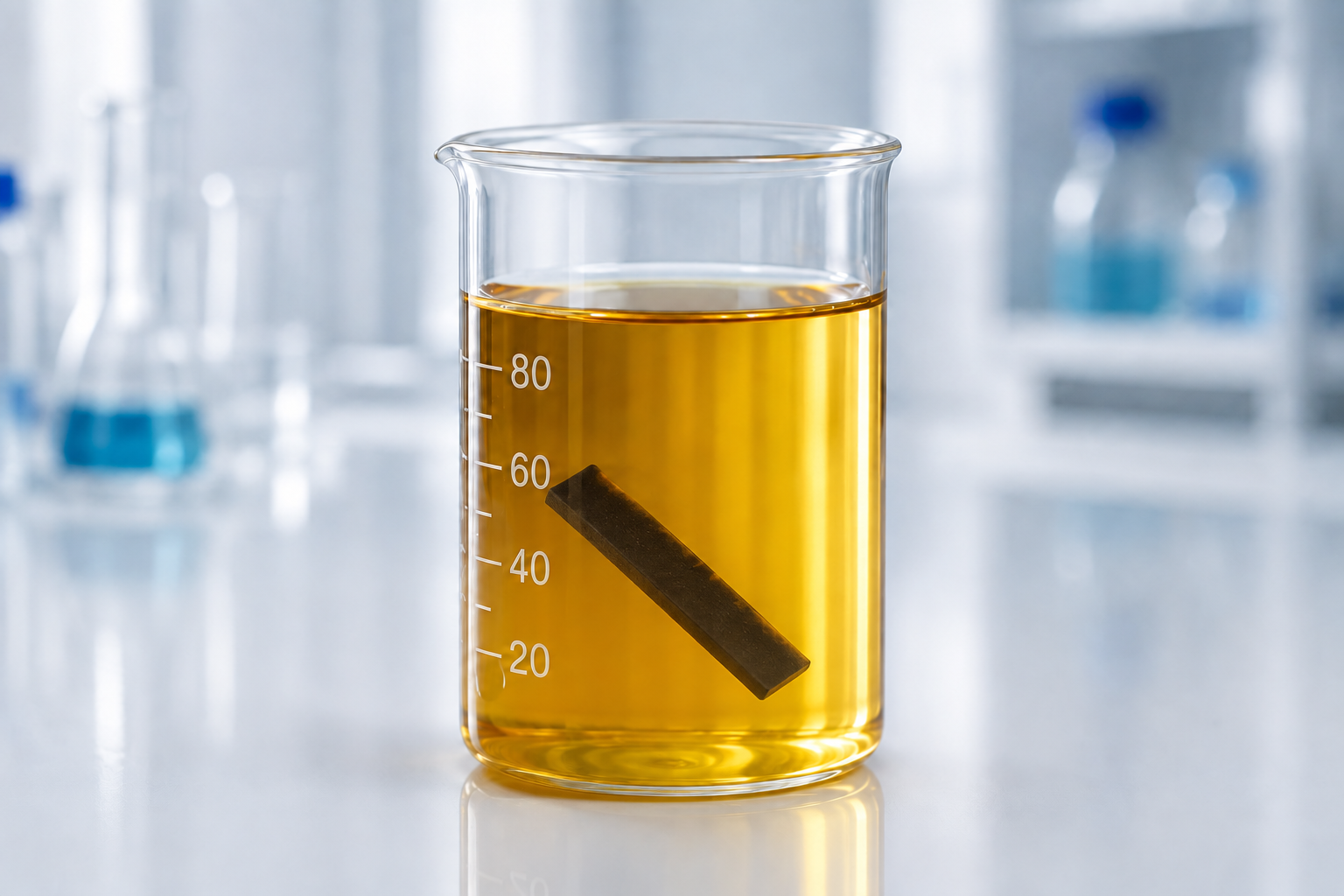

Volume Swell Test Setup Lab

Measures volume change after fluid immersion using precision dimensional and weight measurement accurate to ±0.001 g. It confirms compatibility with oils, fuels, solvents, and chemicals across expected operating environments.

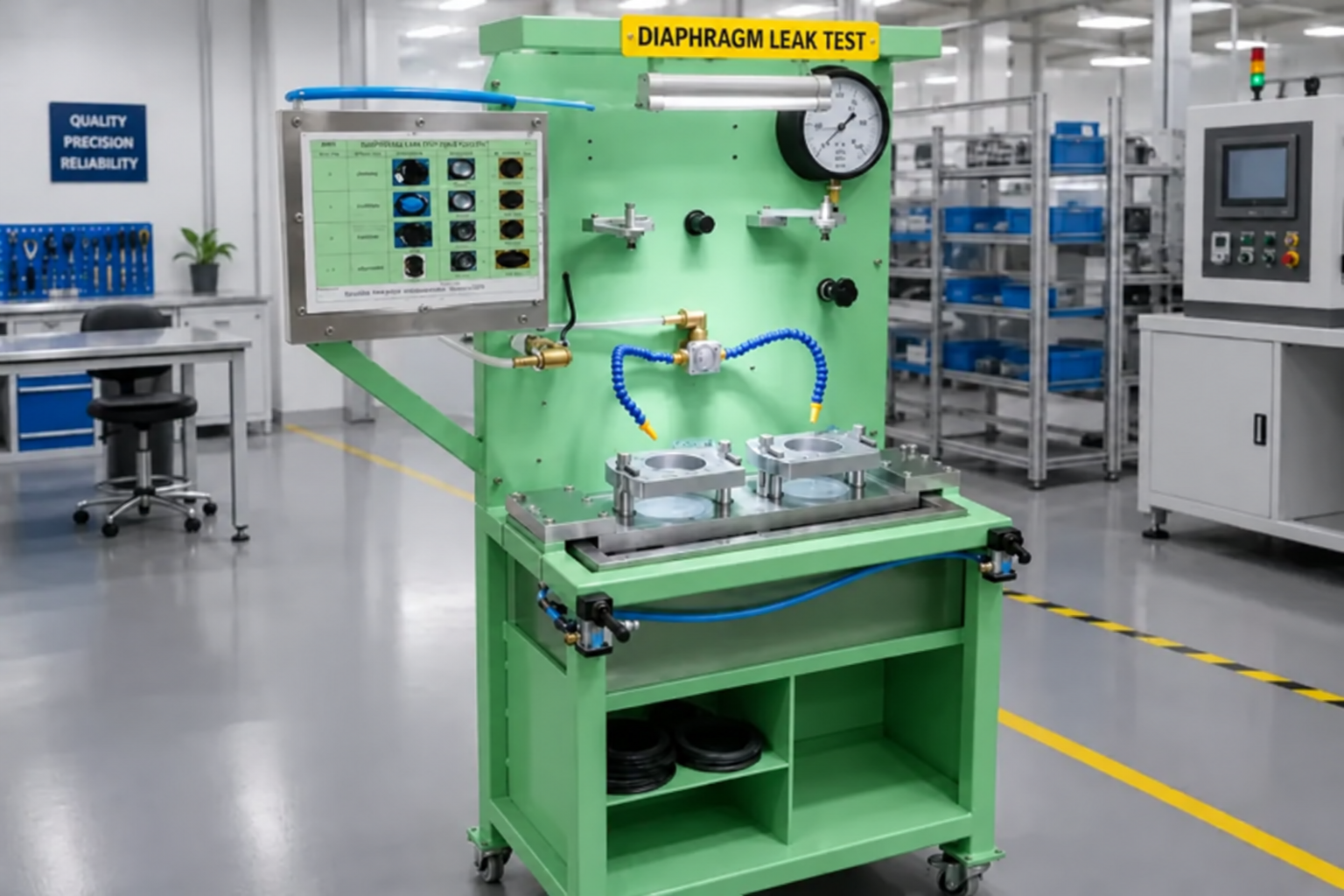

Diaphragm Leak Test Fixture

Applies regulated air or fluid pressure through a custom-designed fixture to detect leaks in every diaphragm produced. It confirms sealing integrity and leak-free performance before shipment.
Functional Life Tester

Functional Life Tester

Simulates real operating conditions using programmable cyclic actuation with adjustable pressure, stroke, and frequency, tracked by a continuous cycle counter. It produces cycle-to-failure data for rubber components.
Specific Gravity Tester

Specific Gravity Balance

Uses the hydrostatic weighing principle and a high-resolution digital balance to measure the density of rubber compounds and molded parts. This verifies formulation and filler loading consistency across batches.

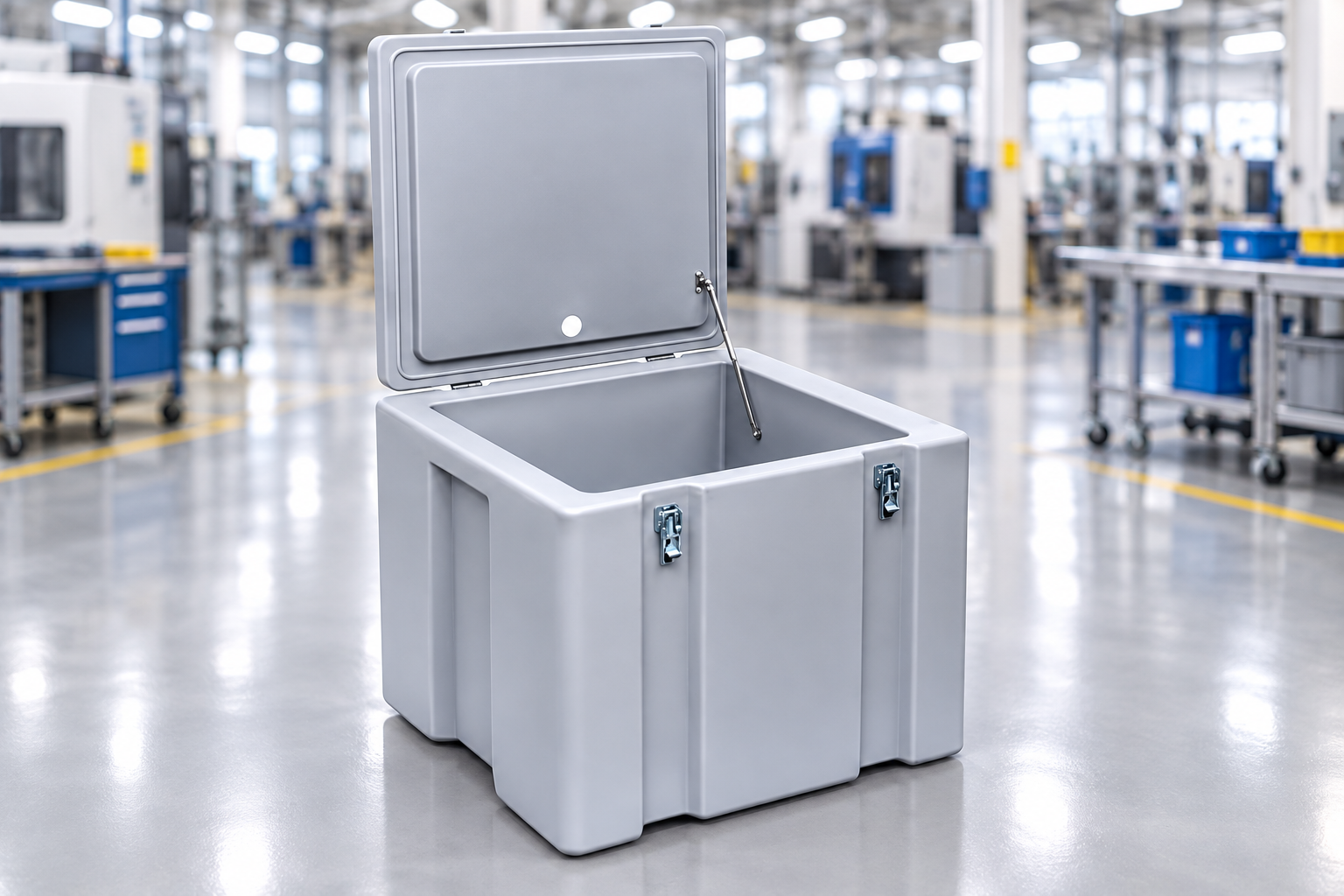

Low Temperature Cabinet

Low Temperature Cabinet

Maintains a controlled sub-zero environment with uniform cooling across the chamber to evaluate rubber performance in cold-service conditions. It confirms flexibility, elasticity, and brittleness risk for critical cold-service applications.
Hot Air Oven

Hot Air Oven

Provides precision temperature control and uniform heat distribution across a wide operating range for material conditioning, post-curing, drying, and accelerated ageing. This ensures repeatable specimen preparation and evaluation.
Video Measuring Tool

Video Measuring System (VMS)

Uses non-contact optical measurement with a high-resolution camera, digital image processing, and 67x zoom to achieve micron-level dimensional accuracy. It verifies critical dimensions, profiles, flash, and molded features against tolerance.

Why Choose DST Rubber

High-Pressure Resistance

Our diaphragms are engineered to withstand extreme pressure conditions, ensuring longevity and reliability.

Custom Designs

We offer customized diaphragms tailored to specific requirements, including different materials, sizes, and designs.

Precision Manufacturing

With advanced technology and a dedicated team, we ensure every diaphragm is manufactured to exacting standards.

Global Standards

 Our diaphragms comply with international certifications like FDA, REACH, and RoHS, making them suitable for a variety of industries worldwide.

Get Custom Rubber Components Tailored to Your Needs

Contact us today to discuss your requirements and get high-quality, durable solutions!

Contact Us
Applications

Versatile Rubber Solutions for Pumps in Diverse Industries

Our rubber components for pumps are designed to meet the specific demands of various industries. From automotive to oil & gas, we provide reliable solutions that enhance efficiency, durability, and performance.

Automotive
Durable rubber components ensuring reliable performance in automotive pump systems.
HVAC
Rubber components designed for optimal performance in HVAC pump systems.
Water and Wastewater
High-performance rubber seals for efficient water treatment and wastewater pumps.
Pharmaceutical
FDA-approved rubber components ensuring safety and efficiency in pharmaceutical pumps.
// Latest News & Blog

Get Update News For Factory & Industrial Information

View More News

Get a Custom Quote

Looking for high-quality custom rubber components? We’re here to provide you with tailored solutions that meet your exact requirements. Simply fill out the form below, and we’ll provide a personalized quote based on your specifications.

    FAQ

    What equipment does DS rubber use for rubber compounding?

    DS Rubber compounds rubber using an Automatic Chemical Weighing System (±0.1 g accuracy), a Dispersion Kneader for filler dispersion, and a Two Roll Mill for final homogenization and sheeting.

    How does DS rubber test cure characteristics of rubber compounds?

    DS rubber uses an Oscillating Disc Rheometer, which generates a torque-vs-time cure curve to determine optimum cure time, scorch safety, cure rate, and crosslink density.

    What testing does DS rubber perform on rubber diaphragms?

    DS rubber tests diaphragms using a Calendering Machine for controlled fabric-reinforced sheet thickness during manufacturing, a Diaphragm Leak Test Fixture for pressure/leak validation, and a Functional Life Tester for cyclic fatigue life.

    How accurate is DS rubber's raw material weighing?

    DS rubber's Automatic Chemical Weighing System weighs raw materials to an accuracy of ±0.1 g, with batch-wise identification and traceability.

    Does DS rubber test chemical resistance of rubber compounds?

    Yes. DS rubber uses a Volume Swell Test Setup, accurate to ±0.001 g, to measure volume change after immersion in oils, fuels, solvents, and chemicals.

    How does DS rubber verify bond strength on rubber-to-metal parts?

    DS rubber uses a Fabric / Metal to Rubber Adhesion Tester, which measures peel and pull-off bond strength using digital force measurement.

    What dimensional inspection method does DS rubber use for finished parts?

    DS rubber uses a Video Measuring System (VMS) with non-contact optical measurement, 67x zoom, and micron-level accuracy to verify dimensions without physically contacting the part.
